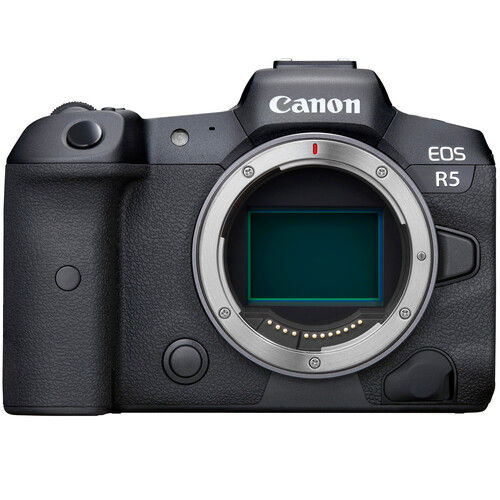

Canon EOS R5 Mirrorless Camera

Imaging

Lens Mount	Canon RF
Sensor Resolution	Actual: 47.1 Megapixel Effective: 45 Megapixel (8192 x 5464)
Sensor Type	36 x 24 mm (Full-Frame) CMOS
Image Stabilization	Sensor-Shift, 5-Axis
Built-In ND Filter	None
Capture Type	Stills & Video

Exposure Control

Shutter Type	Electronic Shutter, Mechanical Focal Plane Shutter
Shutter Speed	Mechanical Shutter 1/8000 to 30 Seconds Electronic Front Curtain Shutter 1/8000 to 30 Seconds Electronic Shutter 1/8000 to 0.5 Seconds
ISO Sensitivity	Photo 100 to 51,200 in Manual Mode (Extended: 50 to 102,400) Photo 100 to 51,200 in Auto Mode Video 100 to 25,600 (Extended: 51,200)
Metering Method	Center-Weighted Average, Evaluative, Partial, Spot
Exposure Modes	Aperture Priority, Manual, Program, Shutter Priority
Exposure Compensation	-3 to +3 EV (1/3, 1/2 EV Steps)
Metering Range	-3 to 20 EV
White Balance	2000 to 10,000K Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten
Continuous Shooting	Mechanical Shutter Up to 12 fps at 45 MP for up to 180 Frames (Raw) / 350 Frames (JPEG) Electronic Shutter Up to 20 fps at 45 MP for up to 83 Frames (Raw) / 170 Frames (JPEG)
Interval Recording	Yes
Self-Timer	2/10-Second Delay

Still Image Capture

Image Sizes	3:2 JPEG / Raw 8192 x 5464 5808 x 3872 4176 x 2784 2976 x 1984 2400 x 1600
Aspect Ratio	1:1, 3:2, 4:3, 16:9
Image File Format	JPEG, Raw
Bit Depth	14-Bit

Internal Video Capture

Raw Recording	Raw 12-Bit 8192 x 4320 at 23.98/24.00/25/29.97 fps [2600 Mb/s]
Recording Modes	H.265 4:2:2 10-Bit DCI 8K (8192 x 4320) at 23.98p/24.00p/25p/29.97p [680 to 1300 Mb/s] UHD 8K (7680 x 4320) at 23.98p/25p/29.97p [680 to 1300 Mb/s] DCI 4K (4096 x 2160) at 23.98p/24.00p/25p/29.97p/59.94p/100p/119.88p [170 to 1880 Mb/s] UHD 4K (3840 x 2160) at 23.98p/25p/29.97p/50p/59.94p/100p/119.88p [170 to 1880 Mb/s] Full HD (1920 x 1080) at 23.98p/25p/29.97p/50p/59.94p [28 to 230 Mb/s] H.264 4:2:0 8-Bit DCI 8K (8192 x 4320) at 23.98p/24.00p/25p/29.97p [470 to 1300 Mb/s] UHD 8K (7680 x 4320) at 23.98p/25p/29.97p [470 to 1300 Mb/s] DCI 4K (4096 x 2160) at 23.98p/24.00p/25p/29.97p/50p/59.94p/100p/119.88p [120 to 1880 Mb/s] UHD 4K (3840 x 2160) at 23.98p/25p/29.97p/50p/59.94p/100p/119.88p [120 to 1880 Mb/s] Full HD (1920 x 1080) at 23.98p/25p/29.97p/50p/59.94p [12 to 180 Mb/s]
Sensor Crop Modes	Super35 / APS-C 4K
Gamma Curve	Canon Log, Canon Log 3
Recording Limit	Up to 29 Minutes, 59 Seconds
Video System	NTSC/PAL
Built-In Microphone Type	Stereo
Audio Recording	AAC Audio LPCM Audio

External Video Capture

External Recording Modes	4:2:2 10-Bit via HDMI DCI 4K (4096 x 2160) up to 59.94p UHD 4K (3840 x 2160) up to 59.94p
IP Streaming	Yes

Interface

Media/Memory Card Slot	Slot 1: CFexpress Type B Slot 2: SD/SDHC/SDXC (UHS-II)
Video I/O	1 x Micro-HDMI Output
Audio I/O	1 x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body
Other I/O	1 x USB Type-C (USB 3.2 / 3.1 Gen 2) Input/Output (Shared with Power Input) 1 x Canon N3 Control Input
Power I/O	1 x USB Type-C (5 VDC at 1.5 A) Input
Wireless	5 GHz Wi-Fi 5 (802.11ac), Bluetooth Control
Global Positioning (GPS, GLONASS, etc.)	None

Monitor

Size	3.2"
Resolution	2,100,000 Dot
Display Type	Free-Angle Tilting Touchscreen LCD
Secondary Display	Top: Status Display

Viewfinder

Type	Built-In Electronic (OLED)
Size	0.5"
Resolution	5,760,000 Dot
Eye Point	23 mm
Coverage	100%
Magnification	Approx. 0.76x
Diopter Adjustment	-4 to +2

Focus

Focus Type	Auto and Manual Focus
Focus Mode	Continuous-Servo AF, Manual Focus, Single-Servo AF
Autofocus Points	Phase Detection: 1053
Autofocus Sensitivity	-6 to +20 EV

Flash

Built-In Flash	No
Maximum Sync Speed	1/250 Second
Flash Compensation	-3 to +3 EV (1/3, 1/2 EV Steps)
Dedicated Flash System	eTTL
External Flash Connection	Hot Shoe

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	0 to 85%

General

Battery Type	1 x LP-E6NH Rechargeable Lithium-Ion
Tripod Mounting Thread	1 x 1/4"-20 Female (Bottom)
Accessory Mount	1 x Hot Shoe Mount
Material of Construction	Magnesium Alloy
Dimensions (W x H x D)	5.43 x 3.84 x 3.46" / 138 x 97.5 x 88 mm
Weight	1.62 lb / 738 g (Body with Battery and Memory)

For the professional image-maker who needs resolution, speed, and video capabilities, there is the Canon EOS R5. Setting a new standard for versatility, this full-frame mirrorless camera features a newly developed 45MP CMOS sensor, which offers 8K raw video recording, 12 fps continuous shooting with a mechanical shutter, and is the first EOS camera to feature 5-axis sensor-shift image stabilization.

Beyond just resolution, the sensor also pairs with the refined DIGIC X image processor to usher in a new generation of Dual Pixel CMOS AF for quick, smooth, and intelligent focusing performance using 1053 selectable points that cover the entire field of view. This focusing system has also been updated to make use of Deep Learning technology for improved subject tracking as well as precise eye, face, and head-detection for both people and animals.

Complementing the imaging assets, the R5, while sporting a new design, also feels familiar to EOS 5-series users. An especially high-resolution 0.5" 5.76m-dot electronic viewfinder provides a realistic 120 fps refresh rate while the 3.2" rear touchscreen LCD monitor sports a vari-angle design to accommodate vlogging needs as well as benefit working from high and low angles. A top status LCD makes for an intuitive workflow and the camera also incorporates dual memory card slots—one CFexpress Type B, one SD UHS-II—along with Bluetooth and Wi-Fi wireless connectivity.

45MP Full-Frame Sensor and DIGIC X Processor

Built around a newly developed 45MP full-frame CMOS sensor, the EOS R5 offers both high-resolution stills and video output and the fine-tuned DIGIC X image processor complements this with a wealth of speed. Sensitivity from ISO 100-51200, which can be expanded to ISO 102400, suits working in a variety of lighting conditions while quick continuous shooting up to 12 fps with a mechanical shutter, or silent 20 fps with an electronic shutter, is ideal for working with moving subjects.

8K30 Raw and 4K120 Video Recording

Benefitting more than just stills, the 45MP full-frame sensor also enables impressively high-resolution DCI 8K 30 fps raw video recording internally along with 4K recording up to 120 fps in 4:2:2 10-bit with Canon Log. HDR-PQ recording is possible, too, in-camera HDR production and external recording, via the HDMI port supports a clean 4K output at up to 60 fps. Both All-I and IPB compression options are available, along with the ability to use Dual Pixel CMOS AF when shooting at up to 8K raw.
